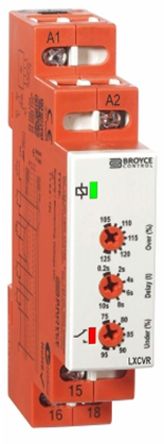

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 115 V ac [LXCVR 115V]; 850-5398
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 115 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Voltage Sensing Range | 86 → 109 (Under) V, 121 → 144 (Over) V |
| Phase Sensitivity | Single Phase |
| Time Delay | 0.2 → 10 s |
| Mounting Type | DIN Rail |
| Height | 89mm |
| Special Features | Time Delay |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Screw |
| Operating Temperature Range | -20 → +60 °C |
| Width | 17.5mm |
| Length | 66.5mm |
| Series | L-Series |
| Standards Met | IEC 60664 |
| Dimensions | 17.5 x 89 x 66.5 mm |
| Current Range | Maximum of 8 A |
| Minimum Operating Temperature | -20°C |
