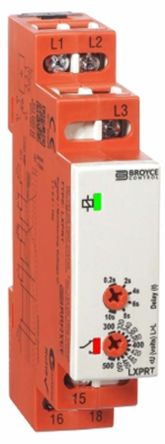

Broyce Control Phase, Voltage Monitoring Relay With SPDT Contacts, 230 V ac [LXPRF-4W 230V (400V)]; 850-5386
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 230 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Undervoltage |
| Voltage Sensing Range | Maximum of 300 V |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Time Delay | 100 mS |
| Series | L-Series |
| Length | 66.5mm |
| Width | 17.5mm |
| Operating Temperature Range | -20 → +60 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 89mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Current Range | Maximum of 8 A |
| Dimensions | 17.5 x 89 x 66.5 mm |
| Standards Met | IEC 60664 |
