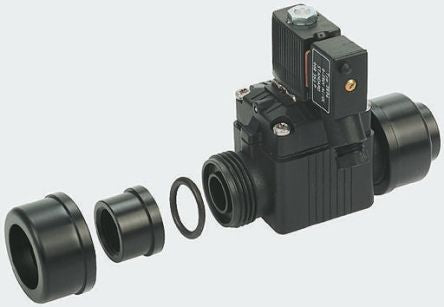

Burkert Solenoid Valve 142240, 2 port , NC, 24 V dc, 1/2in [142240]; 388-5006
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 2 |
| Operation | Pilot |
| Connection | 1/2 in G Female |
| Connection Size | 1/2in |
| Default Valve Position | NC |
| Suitable Applications | Neutral Media |
| Type | 43863 |
| Orifice Diameter | 13mm |
| Body Material | Polyamide |
| Maximum Working Pressure | 10 bar |
| Operating Temperature Range | 0 → +50 °C |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Maximum Closing Time | 300ms |
| Servo Assist | Yes |
| Thread Standard or Connection Type | G |
| Series | 6228 |
| Flow Factor Kv | 3.2m³/h |
| Maximum Opening Time | 60ms |
| Connection Gender | Female |
