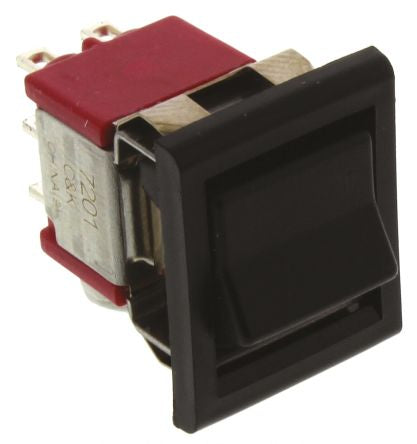

C & K Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount [7201J51ZQE22]; 179-1050
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 20.32mm |
| Panel Cut Out Height | 12.7mm |
| Contact Current Rating | 5 A @ 28 V dc |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP00 |
| Terminal Type | Solder |
| Actuator Shape | Rectangular |
| Case Material | Stainless Steel |
| AC Voltage Rating | 250V |
| Contact Material | Silver Plated Silver Alloy |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| DC Voltage Rating | 28V |
| Maximum Operating Temperature | +85°C |
