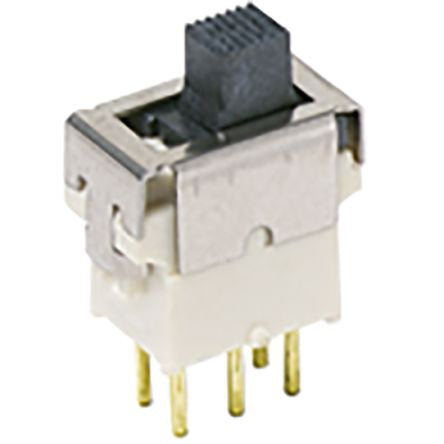

IP57 Through Hole Slide Switch Single Pole Double Throw (SPDT) On-Off-On 100 mA @ 4 V dc Slide [ES03MCBE]; 176-9581
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | Through Hole |
| Switch Operation | On-Off-On |
| Contact Current Rating | 100 mA @ 4 V dc |
| IP Rating | IP57 |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 10.03mm |
| Width | 6.02mm |
| Depth | 12.21mm |
| Dimensions | 10.03 x 6.02 x 12.21mm |
| Contact Resistance | 50mΩ |
| Voltage Rating | 20V ac/dc |
| Minimum Operating Temperature | -30°C |
| Contact Material | Bronze |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Actuator Material | Liquid Crystal Polymer |
