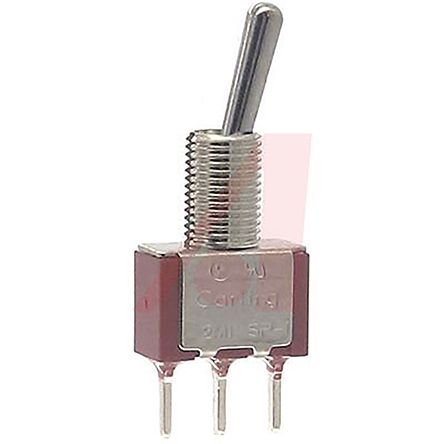

Carling Technologies Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount [2M1-SP1-T1-B1-M2QE]; 879-8332
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | Latching |
| Contact Current Rating | 0.208333333333333 |
| Mounting Type | Panel Mount |
| Terminal Type | Through Hole |
| Panel Cut Out Diameter | 6.35 (1/4 Bushing) mm, 11.91 (15/32 Bushing) mm |
| Actuator Length | 10.4mm |
| Actuator Material | Brass |
| Voltage Rating | 250V ac |
| Contact Resistance | 10mΩ |
| Standards Met | CSA, MIL-STD-202, UL, UL 94V-0 |
| Operating Temperature Range | -30 +85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
