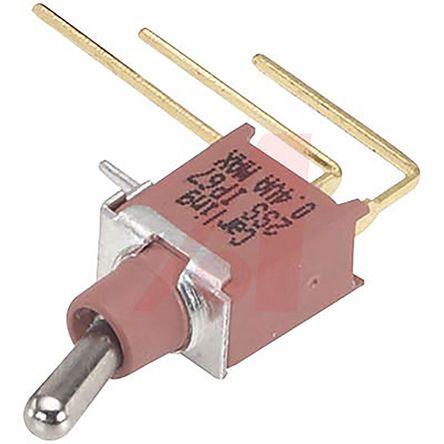

Carling Technologies Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount [2SS-MSP1-T2-B4-M71RE]; 879-8364
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Terminal Type | Through Hole |
| Panel Cut Out Diameter | 4.95 (10 → 48 Bushing) mm, 6.35 (1/4 in Bushing) mm |
| Actuator Length | 6.1mm |
| Actuator Material | Brass |
| Voltage Rating | 20V |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | MIL-STD-202, UL 94V-0 |
| Contact Material | Brass |
