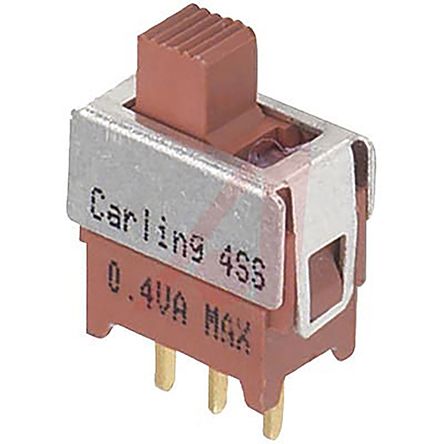

PCB Slide Switch Single Pole Single Throw (SPST) Latching 100 (Contact) mA Slide [4S1-FSP1-M2RE]; 879-8427
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 100 (Contact) mA |
| Terminal Type | Pc Pin |
| Actuator Type | Slide |
| Length | 10.2mm |
| Width | 5.1mm |
| Depth | 10.15mm |
| Dimensions | 10.2 x 5.1 x 10.15mm |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 20V ac/dc |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Actuator Material | Nylon |
| Contact Material | Copper Alloy |
