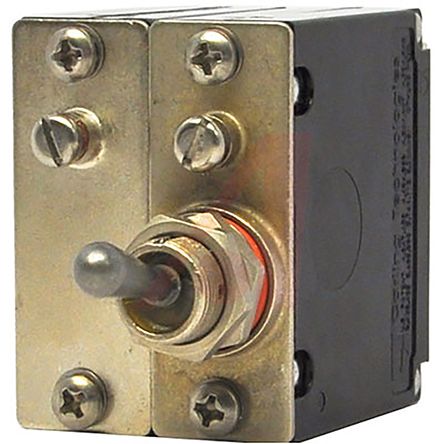

Carling Technologies 10A 2 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 277 V ac A [AM2-B0-34-610-201-C]; 881-4810
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Number of Poles | 2 |
| Series | A |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 80 V dc |
| Mounting Style | Panel Mount |
| Overall Length | 37.9mm |
| Overall Depth | 50.8mm |
| Tripping Mechanism | Hydraulic-Magnetic |
| Mounting Hole Diameter | 13.1mm |
| Application | Generators, Marine Applications, Military, Renewable Energy Systems, Telecommunications, Welder |
| Special Features | Meets IP68 Requirement, Specially Constructed Version Available For Applications Requiring CE Markings, The Metal Toggle Option was Tested to MIL-PRF-55629C for Ingress Protection When Mounted in a Panel |
| Rated DC Voltage | 80V |
| Break Time | Medium |
| Reset Actuator Type | Toggle Switch |
| Overall Dimensions | 37.85 x 77.9 x 50.8mm |
| Mounting Hole Size | 13.09 (Dia.)mm |
| Terminal Contact Type | Screw |
