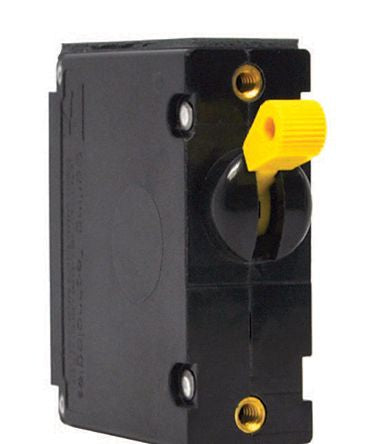

Carling Technologies 15A 1 Pole Thermal Magnetic Circuit Breaker, 80 V dc, 277 V ac B [BA1-B0-34-615-1A1-C]; 881-4841
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 15A |
| Number of Poles | 1 |
| Series | B |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 120 V ac, 5000 A @ 80 V dc |
| Overall Length | 19.2mm |
| Mounting Style | Panel Mount |
| Mounting Hole Diameter | 16mm |
| Tripping Mechanism | Hydraulic-Magnetic |
| Application | Control Panels, Generator and Welder Markets, Marine Applications, Medical Equipment, Military, Office Equipment, Power Supplies |
| Terminal Contact Type | Quick Connect |
| Overall Depth | 61.4mm |
| Overall Dimensions | 19.18 x 50.8 x 61.44mm |
| Reset Actuator Type | Handle |
| Circuit Breaker Type | MCCB |
| Rated DC Voltage | 80V |
| Rated AC Voltage | 277V |
| Special Features | Extra Insulation and Tongue and Groove Half-Shell Constructions, UL489 Approvals Available |
| Break Time | Medium |
