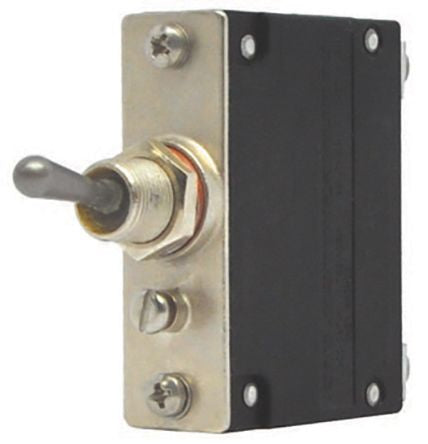

Carling Technologies 10A 1 Pole Thermal Magnetic Circuit Breaker, 150 V dc, 240 V ac C [CM1-B0-22-610-201-C]; 881-1117
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Current Rating | 10A |
| Number of Poles | 1 |
| Series | C |
| Break Time | Short |
| Special Features | The UL489 C-Series Employs A Unique Arc Chute Design Which Allows For Higher Interrupting Capacities Of Up to 10,000 Amps. New Thermoset Glass Filled Polyester Half Shell Construction Provides For Increased Mechanical and Electrical Strength |
| Rated DC Voltage | 150V |
| Circuit Breaker Type | MCCB |
| Mounting Hole Diameter | 13.1mm |
| Overall Dimensions | 18.8 x 63.5 x 81.92mm |
| Mounting Hole Size | 13.09 (Dia.)mm |
| Overall Depth | 81.9mm |
| Tripping Mechanism | Hydraulic-Magnetic |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Toggle Switch |
| Overall Length | 18.8mm |
| Application | General Purpose |
| Mounting Style | Panel Mount |
| Breaking Capacity at Maximum Voltage Rating | 5000 A @ 125/250 V dc, 10000 A @ 277 V ac |
