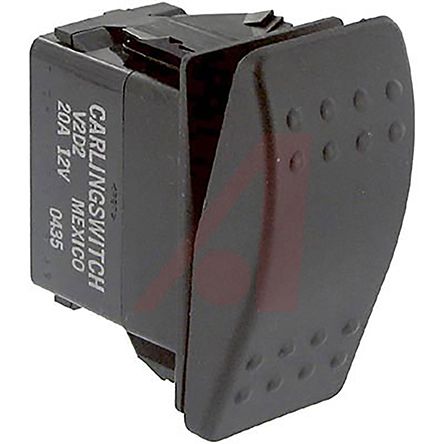

Carling Technologies Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [V15AS00B-AZB00-000]; 881-5406
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.83mm |
| Contact Current Rating | 20 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP66, IP68 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Resistance | 10mΩ |
| DC Voltage Rating | 12V |
| Contact Material | Silver |
| Case Material | Polyester |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Panel Cut Out Size | 36.83 x 21.08mm |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 150000Operations |
