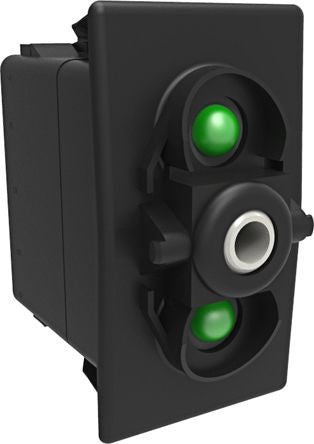

Carling Technologies Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount [VDB2UJJC-00000-000]; 913-2727
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.83mm |
| Contact Current Rating | 15 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP66, IP68 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Material | Silver, Silver Alloy, Silver Tin Oxide |
| Case Material | Polyester |
| Operating Temperature Range | -40 → +85°C |
| Panel Cut Out Size | 36.83 x 21.08mm |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| DC Voltage Rating | 24V |
| Mechanical Life | 150000Cycles |
| Maximum Operating Temperature | +85°C |
