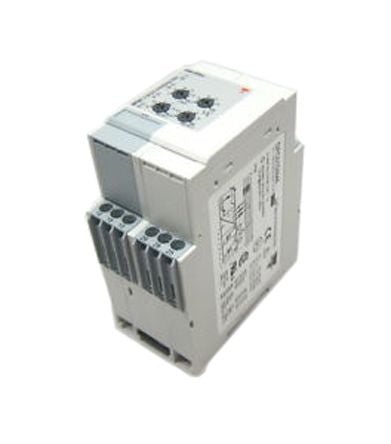

Carlo Gavazzi Phase, Voltage Monitoring Relay With SPDT Contacts, 3, 3+N Phase, 380 → 480 V ac [DPC01DM48]; 857-7426
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Phase, Voltage |
| Supply Voltage | 380 → 480 V ac |
| Contact Configuration | SPDT |
| Voltage Sensitivity | Overvoltage, Undervoltage |
| Electrical Phase | 3, 3+N |
| Voltage Sensing Range | 323 → 550 V ac |
| Phase Sensitivity | Asymmetry, Phase Loss, Phase Sequence, Tolerance |
| Time Delay | 1 s, 6 s |
| Frequency Sensing Range | 50 → 60 Hz |
| Minimum Voltage Sensed | 323 V ac |
| Length | 45mm |
| Minimum Operating Temperature | -20°C |
| Dimensions | 45 x 99.5 x 83.5 mm |
| Height | 83.5mm |
| Maximum Voltage Sensed | 550V ac |
| Operating Temperature Range | -20 → +50 (60 Hz) °C, -20 → +60 (50 Hz) °C |
| Width | 99.5mm |
| Maximum Operating Temperature | +50 (60 Hz) °C, +60 (50 Hz) °C |
| Maximum Frequency Sensed | 60Hz |
| Minimum Frequency Sensed | 50Hz |
