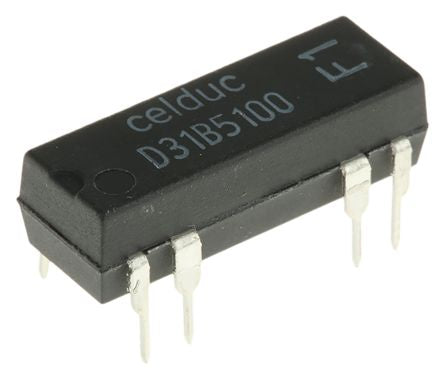

SP-NC Reed Relay, 500 mA, 12V dc [D31B5100]; 178-2781
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SP-NC |
| Coil Voltage | 12V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage DC | 100V dc |
| Coil Resistance | 1 kΩ |
| Length | 19.1mm |
| Height | 6.4mm |
| Depth | 6.6mm |
| Dimensions | 19.1 x 6.6 x 6.4mm |
| Isolation Coil To Contact | 750V ac |
| Operating Time Including Bounce | 1ms |
| Life | 10000000 (Electrical) cycles, 1000000000 (Mechanical) cycles |
| Contact Material | Rhodium |
| Maximum Operating Temperature | +85°C |
| Terminal Type | Through Hole |
| Contact Resistance | 150 mΩ |
| Maximum Switching Power DC | 10 W |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
