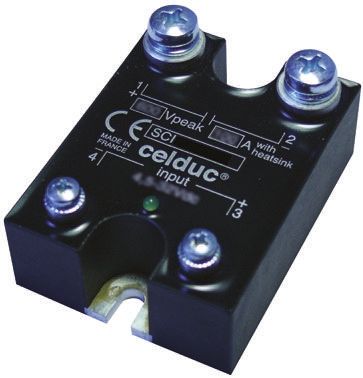

Celduc 50 A Solid State Relay, Chassis Mount, 1200 V Maximum Load [SCI0501200]; 702-6804
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0 |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 1200 V |
| Minimum Control Voltage | 4.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Terminal Type | Screw |
| Maximum Turn On Time | 10 μs |
| Dimensions | 44.5 x 19.6 x 58.2mm |
| Control Voltage Range | 4.5 → 32 V dc |
| Maximum Operating Temperature | +90°C |
| Depth | 19.6mm |
| Height | 58.2mm |
| Off State Leakage Current | 1 mA |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +90°C |
| Length | 44.5mm |
