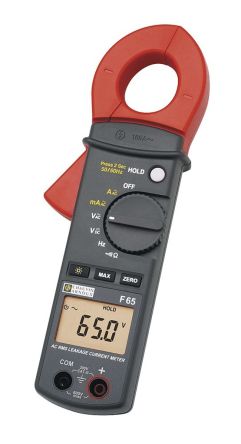

Chauvin Arnoux F65 Clampmeter, Max Current 100A ac CAT III 600 V [P01120761]; 512-5069
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 100A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 1kΩ |
| Model Number | F65 |
| AC Current Measurement Resolution | 10µA |
| Clamp Meter Type | Leakage Current Clamp |
| Best AC Current Accuracy | ±(2.5% rdg + 5dgts) |
| Best AC Voltage Accuracy | ±(2.5% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(2.5% rdg + 5dgts) |
| Maximum Operating Temperature | +40°C |
| Power Source | Battery |
| Non-Contact Voltage Detector | No |
| Width | 64mm |
| Length | 218mm |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 218 x 64 x 30mm |
| DC Voltage Measurement Resolution | 100mV |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Frequency, Resistance |
| True RMS | Yes |
| Minimum Operating Temperature | 0°C |
| Height | 30mm |
| AC Voltage Measurement Resolution | 100mV |
| Display Type | Backlit LCD |
| Best Resistance Measurement Accuracy | ±1% + 3 Digits |
| Safety Category | CAT III 300V |
| Display Type | Backlit LCD |
| Battery Type | AAA |
| Safety Category Voltage | 300V |
| Safety Category Level | CAT lll |
| Weight | 280g |
| Maximum Conductor Size | 28mm |
| Battery Life | 45 h |
| Jaw Capacity Busbars | 28mm |
