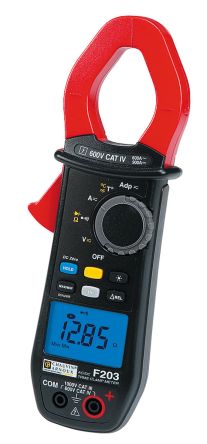

Chauvin Arnoux F203 Clamp Meter, Max Current 600A ac, 900A dc CAT III 1000V [P01120923]; 766-0599
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 900A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 59.99kΩ |
| Model Number | F203 |
| AC Current Measurement Resolution | 0.01A |
| DC Current Measurement Resolution | 0.01A |
| Best DC Current Accuracy | ±1% + 3 Digits |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±1% +3 digits |
| Best AC Voltage Accuracy | ±1% + 3 Digits |
| Best DC Voltage Accuracy | ±1% + 3 Digits |
| Dimensions | 78 x 42 x 222mm |
| DC Voltage Measurement Resolution | 0.01V |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature |
| Best Temperature Measurement Accuracy | ±1% +3°C |
| True RMS | Yes |
| Display Type | Backlit LCD |
| Minimum Operating Temperature | -20°C |
| Height | 222mm |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| AC Voltage Measurement Resolution | 0.01V |
| Maximum Conductor Size | 34mm |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Display Type | Backlit LCD |
| Absolute Maximum Temperature Measurement | +1000°C |
| Battery Type | LF22 |
| Safety Category Voltage | 600V |
| Safety Category Level | CAT IV |
| Weight | 340g |
| Jaw Capacity Busbars | 34mm |
| Battery Life | 130 h |
| Temperature Measurement Resolution | 0.1°C |
| Width | 42mm |
| Power Source | Battery |
| Length | 78mm |
| Maximum Operating Temperature | +55°C |
| Resistance Measurement Resolution | 100mΩ |
