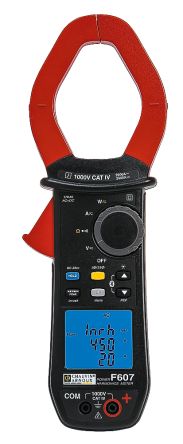

Chauvin Arnoux F607 Clamp Meter, Max Current 2kA ac, 3kA dc CAT III 1000 V, CAT IV 1000 V [P01120967]; 766-0628
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 2kA ac |
| Absolute Maximum DC Current Measurement | 3kA dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 99.99kΩ |
| Model Number | F607 |
| Connectivity | Bluetooth |
| AC Current Measurement Resolution | 10 mA |
| DC Current Measurement Resolution | 10 mA |
| Best DC Current Accuracy | ±(1% rdg + 3dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(1% rdg + 3dgts) |
| Best AC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Best DC Voltage Accuracy | ±(1% rdg + 3dgts) |
| Resistance Measurement Resolution | 100mΩ |
| Length | 296mm |
| Width | 111mm |
| Power Source | Battery |
| DC Voltage Measurement Resolution | 10mV |
| Dimensions | 111 x 41 x 296mm |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1000V |
| Battery Type | AA |
| Display Type | Backlit LCD, LCD - Backlit |
| Safety Category | CAT III 1000 V, CAT IV 1000 V |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Power, Power Factor, Resistance |
| True RMS | Yes |
| Minimum Operating Temperature | -20°C |
| Height | 41mm |
| AC Voltage Measurement Resolution | 10mV |
| Maximum Conductor Size | 60mm |
| Battery Life | 350 h |
| Jaw Capacity Busbars | 60mm |
| Weight | 640g |
| Display Type | Backlit LCD, LCD - Backlit |
| Maximum Operating Temperature | +55°C |
