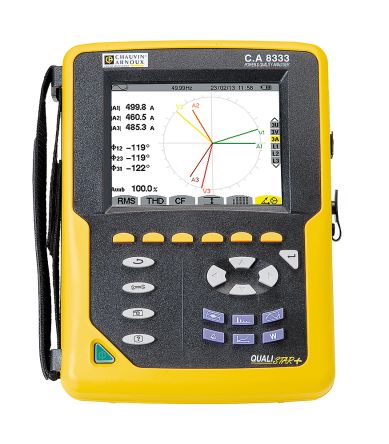

Chauvin Arnoux CA8333 Power Quality Analyser [P01160541EUR]; 799-9061
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum Current Measurement | 100 A ac, 100 A ac/dc, 200 A ac, 1000 A ac, 1300 A ac/dc, 10000 A ac |
| Absolute Maximum Power Measurement | 10mW |
| Number of Phases | 1, 3 |
| Maximum Voltage | 1000V |
| Best Voltage Measurement Accuracy | ±(0.5 % + 200 mV) |
| Best Current Measurement Accuracy | ±(0.5 % + 2 mA) |
| Display Type | Colour, TFT LCD |
| Display Type | Colour, TFT LCD |
| Measurement Type | Current, Inrush Current, Voltage |
| Measurement Standards | EN50160, IEC 61000-4-30 |
| Interface Type | USB |
| Power Source | Battery, Mains |
| Battery Type | Rechargeable NiMH |
| Battery Life | 13 h |
| Weight | 1.9kg |
| Model Number p | CA8333 |
| Height | 55mm |
| Minimum Operating Temperature | 0°C |
| Dimensions | 240 x 180 x 55mm |
| Minimum Frequency | 40 Hz |
| Maximum Frequency | 69Hz |
| Length | 240mm |
| Width | 180mm |
| Maximum Operating Temperature | +50°C |
