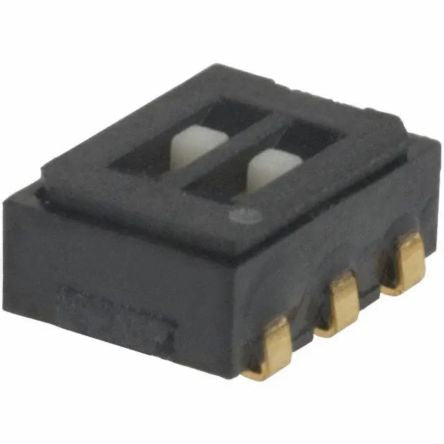

Slide Switch [CAS-D20A]; 196-8139
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Dual SPDT |
| Mounting Type | Surface Mount |
| Contact Current Rating | 100mA |
| Terminal Type | J-Hook |
| Actuator Type | Slide |
| Length | 5.4mm |
| Width | 2.5mm |
| Depth | 2.5mm |
| Dimensions | 5.4mm x 2.5mm x 2.5mm |
| Contact Resistance | 50mΩ |
| Mechanical Life | 2000Operations |
| Operating Temperature Range | -40 → +85°C |
| Actuator Material | Polyamide |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Copper Alloy, Gold Plated |
| Voltage Rating | 6V |
