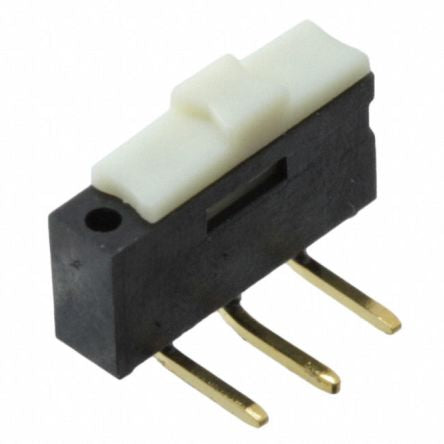

Slide Switch [CL-SA-12C4-02]; 196-8135
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | Through Hole |
| Contact Current Rating | 500mA |
| Actuator Type | Slide |
| Length | 10mm |
| Width | 2.54mm |
| Depth | 6.4mm |
| Dimensions | 10mm x 2.54mm x 6.4mm |
| Contact Resistance | 22mΩ |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold |
| Voltage Rating | 12V |
| Actuator Material | Polyamide |
