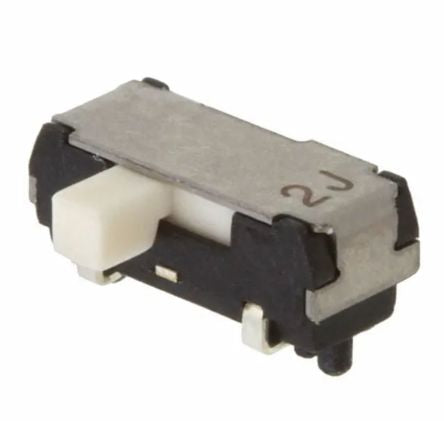

Slide Switch [CL-SB-12A-11]; 196-8132
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | Surface Mount |
| Contact Current Rating | 200mA |
| Terminal Type | J-Hook |
| Actuator Type | Slide |
| Length | 8.5mm |
| Width | 5.5mm |
| Depth | 4.3mm |
| Dimensions | 8.5mm x 5.5mm x 4.3mm |
| Contact Resistance | 50mΩ |
| Mechanical Life | 10000Operations |
| Operating Temperature Range | -40 → +85°C |
| Contact Material | Silver |
| Maximum Operating Temperature | +85°C |
| Actuator Material | Polyamide |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 12V |
