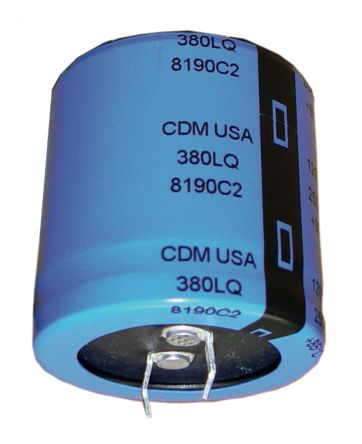

Cornell-Dubilier 220μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 25 x 30mm +85°C 25mm 10mm 30mm [380LQ221M400J022]; 871-4101
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 x 30mm |
| Length | 30mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 1000 (Shelf) h, 2000 (Endurance) h |
| Lead Pitch | 10mm |
| Series | 380LQ |
| Leakage Current | 4 mA |
| Ripple Current | 1.49 A @ 120 Hz, 2.09 A @ 20 kHz |
| Tolerance | ±20% |
| Equivalent Series Resistance | 452 mΩ @ 20 kHz, 905 mΩ @ 120 Hz |
