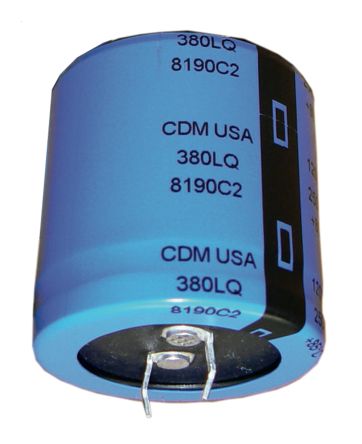

Cornell-Dubilier 470μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 35 x 40mm +85°C 35mm 10mm 40mm [380LQ471M450A042]; 871-4265
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 35 x 40mm |
| Length | 40mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 10mm |
| Lifetime | 1000 (Shelf) h, 2000 (Endurance) h |
| Series | 380LQ |
| Equivalent Series Resistance | 212 mΩ @ 20 kHz, 423 mΩ @ 120 Hz |
| Tolerance | ±20% |
| Ripple Current | 2.53 A @ 120 Hz, 3.54 A @ 20 kHz |
| Leakage Current | 4 mA |
