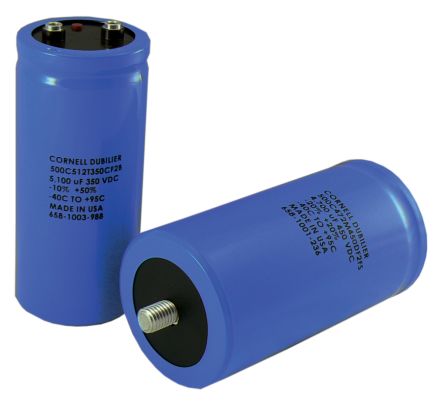

Cornell-Dubilier 10000μF 250V dc Aluminium Electrolytic Capacitor, Chassis Mount 76.2 x 117.48mm +95°C 76.2mm 31.75mm [500C103T250DD2B]; 872-0364
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 250 V dc |
| Mounting Type | Screw Mount |
| Technology | Electrolytic |
| Dimensions | 76.2 x 117.48mm |
| Height | 117.48mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 76.2mm |
| Maximum Operating Temperature | +95°C |
| Lead Pitch | 31.75mm |
| Lifetime | 5000h |
| Series | 500C |
| Equivalent Series Resistance | 16.3mΩ |
| Ripple Current | 18.6A |
| Leakage Current | ≤3 √CV μA, 4 mA |
| Tolerance | -10 → +50% |
