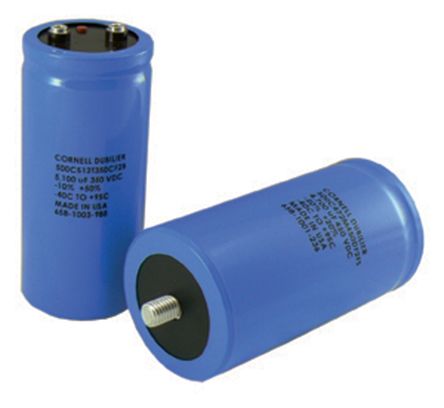

Cornell-Dubilier 5300μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 76.2 x 142.88mm +105°C 76.2mm 31.75mm [550C532T400DF2B]; 872-0367
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 5300 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 76.2 x 142.88mm |
| Height | 142.88mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 76.2mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 31.75mm |
| Lifetime | 5000 h @ 85 °C, 10000 h @ 105 °C |
| Series | 550C |
| Leakage Current | ≤3 √CV μA, 4 mA |
| Equivalent Series Resistance | 22mΩ |
| Ripple Current | 7.8 A @ 105 °C, 21.6 A @ 85 °C |
| Tolerance | -10 → +50% |
