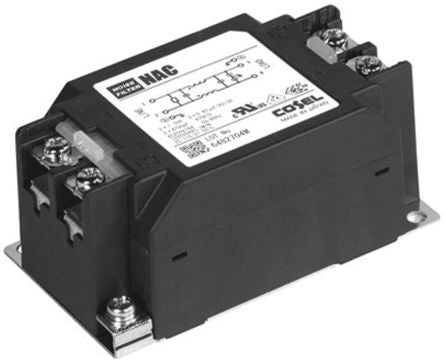

Cosel NAC Series 6A 250 V ac/dc 150 kHz → 1 MHz Panel Mount RFI Filter, with Screw Terminals, Single Phase [NAC-06-472]; 845-6791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Panel Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | NAC |
| Number of Stages | Single Stage |
| Operating Frequency | 150 kHz → 1 MHz |
| Length | 92mm |
| Depth | 53mm |
| Height | 43mm |
| Capacitance | 4.7nF |
| Dimensions | 92 x 53 x 43mm |
| Minimum Operating Temperature | -40°C |
| Leakage Current | 0.5 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 100MΩ |
