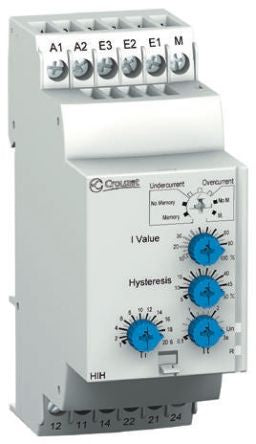

Crouzet Current Monitoring Relay With 2NO/2NC Contacts, 3 Phase, 24 → 240 V ac/dc [84871120]; 614-9375
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | 2NO/2NC |
| Electrical Phase | 3 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 2mA |
| Maximum Current Sensed | 500mA |
| Time Delay | 0.1 → 3 s |
| Maximum Operating Temperature | +50°C |
| Height | 92.6mm |
| Operating Temperature Range | -20 → +50 °C |
| Width | 35mm |
| Length | 65.5mm |
| Dimensions | 65.5 x 35 x 92.6 mm |
| Current Range | 2 → 500 mA |
| Minimum Operating Temperature | -20°C |
