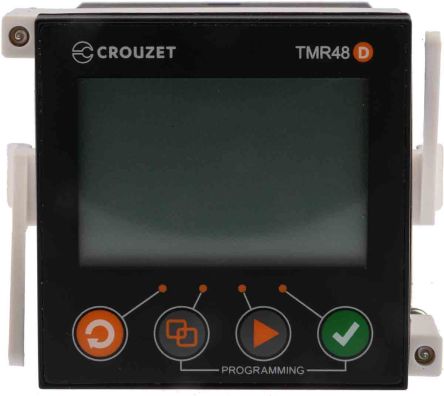

Crouzet 6 Timer Relay, Plug-In, SPDT, 1 Contacts, SPDT, 24 V ac/dc [MDE1R0524U]; 166-3808
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc |
| Time Range | 0.001 → 9.999 s, 0.01 → 99.99 s, 0.1 → 999.9 h, 0.1 → 999.9 min, 0.1 → 999.9 s, 1 min → 99 h 59 min, 1 s → 99 min 59 s, 1 → 9999 h, 1 → 9999 min, 1 → 9999 s |
| Mode of Operation | Interval, Off Delay (Delay on Break), On Delay (Delay on Make), One Shot, Symmetrical Flashing (Off Start), Symmetrical Flashing (On Start) |
| Mounting Type | Panel Mount |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Series | Syr-Line |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 0.208333333333333 |
| Terminal Type | Plug-In |
| Maximum Voltage | 24 V ac/dc |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Length | 48mm |
| Width | 48mm |
| Switch Configuration | SPDT |
| Depth | 68mm |
