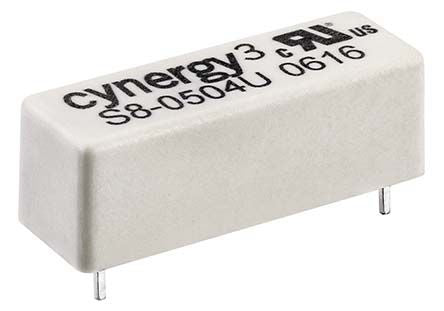

SPNO Reed Relay, 1 A, 5V dc [S8-0504VU/RS]; 124-5136
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPNO |
| Coil Voltage | 5V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current AC | 0.0416666666666667 |
| Maximum Switching Current DC | 0.0416666666666667 |
| Maximum Switching Voltage AC | 1000V |
| Maximum Switching Voltage DC | 1000V |
| Coil Resistance | 120 Ω |
| Length | 30mm |
| Height | 12mm |
| Depth | 10mm |
| Dimensions | 30 x 10 x 12mm |
| Isolation Coil To Contact | 7kV |
| Contact Resistance | 150 mΩ |
| Contact Material | Rhodium |
| Maximum Operating Temperature | +85°C |
| Operating Time Including Bounce | 1ms |
| Life | 10000000 (100 W) operations, 1000000000 (Dry) operations |
| Relay Switching Classification | General Purpose Relay |
| Number of Poles | 1 |
| Special Features | Space Saving |
| Standards Met | UL Approved |
| Maximum Switching Power DC | 100 W |
| Operating Temperature Range | -40 → +85°C |
| Terminal Type | PCB Pin |
| Minimum Operating Temperature | -40°C |
