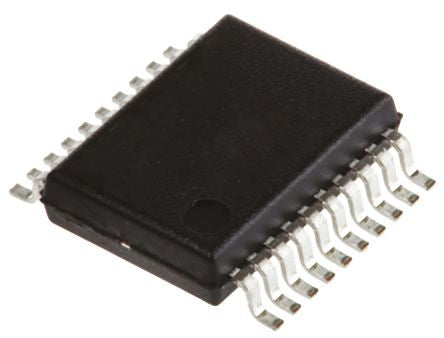

Cypress Semiconductor, CY8C21334-24PVXI [CY8C21334-24PVXI]; 194-9100
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | CY8C21334 |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 512 B |
| USB Channels | 1 |
| Number of PWM Units | 4 |
| ADC Channels | 28 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.4 → 5.25 V |
| Data Rate | 400kbit/s |
| ADC Resolution | 10bit |
| Instruction Set Architecture | Harvard |
| Number of ADC Units | 1 |
| Timer Resolution | 8 bit, 16 bit, 24 bit, 32 bit |
| Height | 1.85mm |
| Pulse Width Modulation | 1 (1 x 16 bit), 1 (1 x 24 bit), 1 (1 x 32 bit), 1 (1 x 8 bit) |
| Width | 5.6mm |
| PWM Channels | 4 |
| PWM Resolution | 8 bit, 16 bit, 24 bit, 32 bit |
| Dimensions | 7.4 x 5.6 x 1.85mm |
| Minimum Operating Temperature | -40 °C |
| Number of Timers | 4 |
| Program Memory Type | Flash |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 1 |
| ADCs | 1 (28 x 10 bit) |
| Length | 7.4mm |
