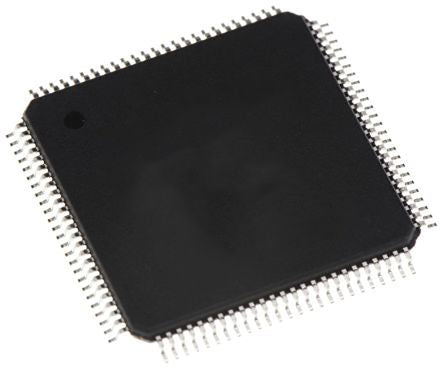

Cypress Semiconductor, CY8C29866-24AXI [CY8C29866-24AXI]; 194-9106
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | CY8C29866 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 24MHz |
| RAM Size | 2 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 1 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 5.25 V |
| Number of I2C Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 14 x 14 x 1.4mm |
| PWM Resolution | 8 bit, 16 bit |
| Pulse Width Modulation | 1 (1 x 16 bit), 1 (1 x 8 bit) |
| Instruction Set Architecture | Harvard |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 1 |
| Length | 14mm |
| ADCs | 1 (1 x 14 bit) |
| Number of Timers | 4 |
| Width | 14mm |
| Data Rate | 400kbit/s |
| ADC Resolution | 14bit |
| Height | 1.4mm |
| Timer Resolution | 8 bit, 16 bit, 24 bit, 32 bit |
| PWM Channels | 2 |
