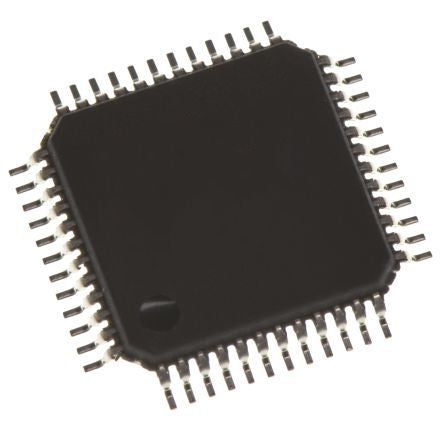

Cypress Semiconductor, CY8C4247AZI-L433 [CY8C4247AZI-L433]; 193-8485
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PSoC 4200L |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex-M0 CPU |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 16 kB |
| USB Channels | 2 |
| Number of PWM Units | 1 |
| ADC Channels | 1 |
| Typical Operating Supply Voltage | 1.71 → 5.5 V |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Length | 7mm |
| ADCs | 1 (1 x 12 bit) |
| Number of Timers | 8 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 12bit |
| Timers | 1 (8 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 7 x 7 x 1.4mm |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Data Rate | 1Mbit/s |
| Width | 7mm |
| PWM Channels | 8 |
| Height | 1.4mm |
| Instruction Set Architecture | RISC |
| Timer Resolution | 16bit |
