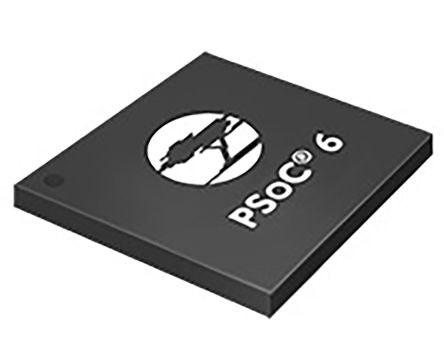

Cypress Semiconductor CY8C6316BZI-BLF03, 32bit ARM Cortex M4F Microcontroller, 150MHz, 512 kB Flash, 116-Pin BGA [CY8C6316BZI-BLF03]; 184-0721
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PSoC 6 |
| Package Type | BGA |
| Mounting Type | Surface Mount |
| Pin Count | 116 |
| Device Core | ARM Cortex M4F |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 150MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 9 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 9 |
| Length | 6.4mm |
| ADCs | 1 (16 x 12 bit) |
| Program Memory Type | Flash |
| Number of I2C Channels | 9 |
| Number of Timers | 2 |
| PWM Resolution | 32bit |
| Dimensions | 6.4 x 5.2 x 0.44mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (24 x 16 bit), 1 (8 x 32 bit) |
| Instruction Set Architecture | RISC |
| ADC Resolution | 12bit |
| Data Rate | 2Mbit/s |
| Number of ADC Units | 1 |
| Timer Resolution | 16 bit, 32 bit |
| Height | 0.44mm |
| Width | 5.2mm |
