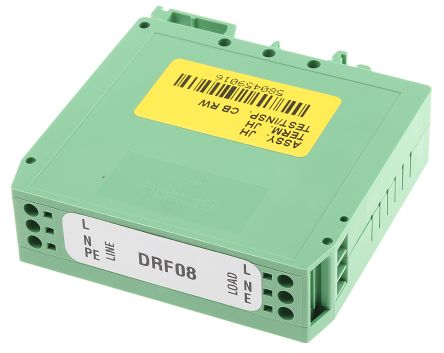

Deltron DRF Series 8A 250 V ac 440Hz DIN Rail EMI Filter, with Screw Terminals, Single Phase [DRF08]; 761-5693
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 8A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | DIN Rail |
| Termination Style | Screw |
| Number of Phases | 1 |
| Series | DRF |
| Operating Frequency | 440Hz |
| Length | 80mm |
| Depth | 22.5mm |
| Height | 93mm |
| Capacitance | 1µF |
| Inductance | 1.5 mH |
| Dimensions | 80 x 22.5 x 93mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.75 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 15mΩ |
| Power Loss | 0.96W |
| Standards Met | EN 60939 |
