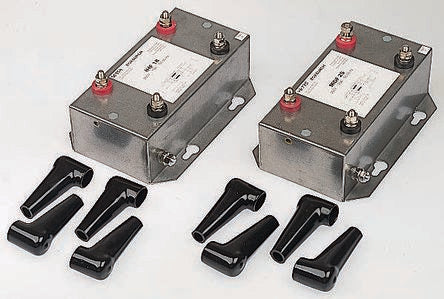

Deltron IHF Series 100A 277 V, 480 V 60Hz Flange Mount EMI Filter, with Stud Terminals [IHF4100]; 761-5719
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 100A |
| Maximum Voltage Rating | 277 V, 480 V |
| Mounting Type | Flange Mount |
| Termination Style | Stud |
| Series | IHF |
| Operating Frequency | 60Hz |
| Length | 238mm |
| Depth | 186mm |
| Height | 85mm |
| Capacitance | 2.2µF |
| Inductance | 400 μH |
| Dimensions | 238 x 186 x 85mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 3.5 mA |
| Maximum Operating Temperature | +85°C |
| Resistance | 300µΩ |
| Standards Met | EN 60939 |
| Power Loss | 3W |
