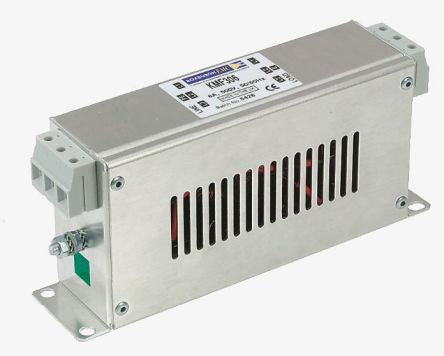

Deltron KMF Series 70A 500 V ac 60Hz Flange Mount EMI Filter, with Terminal Block Terminals 3 Phase [KMF370A]; 761-5820
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 70A |
| Maximum Voltage Rating | 500 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Terminal Block |
| Number of Phases | 3 |
| Series | KMF |
| Operating Frequency | 60Hz |
| Length | 312mm |
| Depth | 93mm |
| Height | 190mm |
| Dimensions | 312 x 93 x 190mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 21.4 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 1.3mΩ |
| Power Loss | 6.4W |
| Standards Met | UL 1283 |
