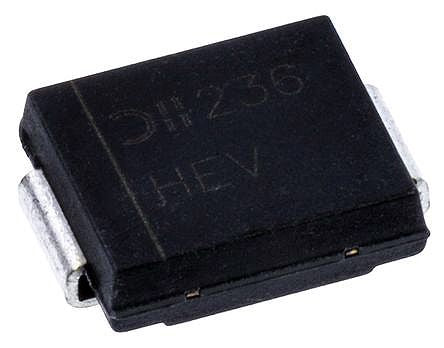

Diodes Inc 3.0SMCJ58A-13, Uni-Directional TVS Diode, 3000W, 2-Pin SMC [3.0SMCJ58A-13]; 170-8971
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 93.6V |
| Minimum Breakdown Voltage | 64.4V |
| Mounting Type | Surface Mount |
| Package Type | SMC |
| Maximum Reverse Stand-off Voltage | 58V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 3000W |
| Maximum Peak Pulse Current | 32.1A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Maximum Reverse Leakage Current | 5µA |
| Length | 7.11mm |
| Capacitance | 1.5nF |
| Dimensions | 7.11 x 6.22 x 2.3mm |
| Surge Current Rating | 300A |
| Test Current | 1mA |
| Width | 6.22mm |
| Height | 2.3mm |
