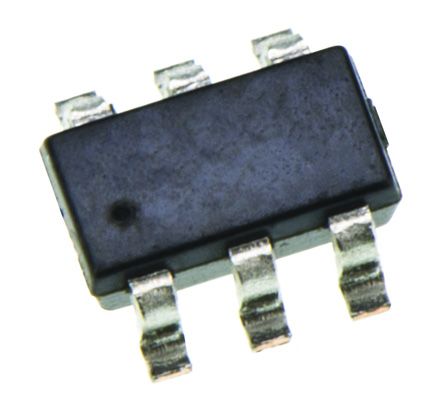

DiodesZetex 74LVC1G11W6-7, 3-Input AND Logic Gate, 1.65 → 5.5 V, 5-Pin SOT-26 [74LVC1G11W6-7]; 921-0281
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 3 |
| Schmitt Trigger Input | No |
| Package Type | SOT-26 |
| Pin Count | 5 |
| Logic Family | LVC |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 3.7 ns @ 15 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Length | 3.1mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.7mm |
| Propagation Delay Test Condition | 15pF |
| Dimensions | 3.1 x 1.7 x 1.3mm |
| Output Type | Push-Pull |
| Height | 1.3mm |
| Maximum Operating Temperature | +125 °C |
