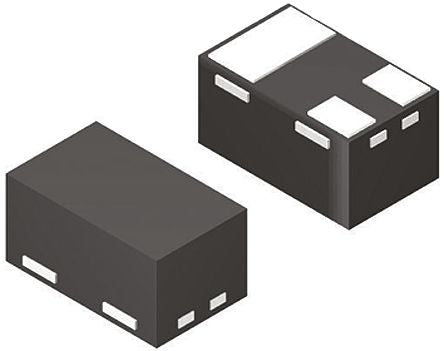

Diodes Inc BC846BLP4-7B NPN Transistor, 100 mA, 65 V, 3-Pin X2-DFN1006 [BC846BLP4-7B]; 823-2527
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 65 V |
| Package Type | X2-DFN1006 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Minimum DC Current Gain | 450 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 80 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 300 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 0.65mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | 900 mV |
| Dimensions | 1.05 x 0.65 x 0.35mm |
| Length | 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.35mm |
| Maximum Collector Emitter Saturation Voltage | 600 mV |
