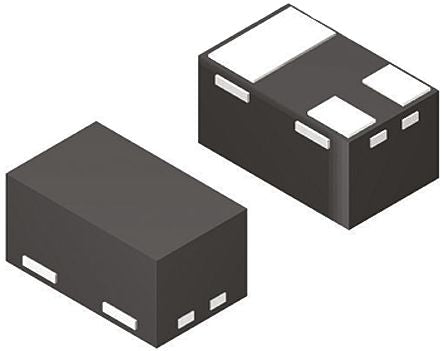

Diodes Inc BC847BLP-7 NPN Transistor, 100 mA, 45 V, 3-Pin DFN [BC847BLP-7]; 121-9585
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Minimum DC Current Gain | 200 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 50 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 (Min.) MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Collector Emitter Saturation Voltage | 600 mV |
| Width | 0.675mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Base Emitter Saturation Voltage | 700 mV, 900 mV |
| Dimensions | 1.075 x 0.675 x 0.48mm |
| Length | 1.08mm |
| Height | 0.48mm |
| Maximum Operating Temperature | +150 °C |
