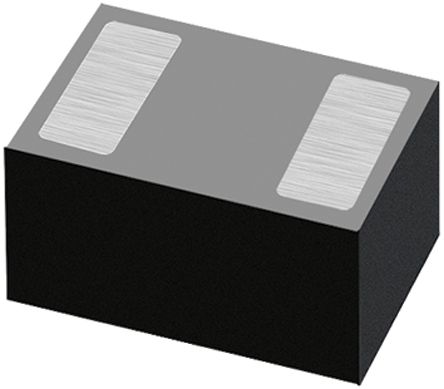

Diodes Inc D5V0F1U2LP-7B, Triple Uni-Directional TVS Diode, 0.25W, 2-Pin DFN [D5V0F1U2LP-7B]; 921-0978
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.25W |
| Maximum Peak Pulse Current | 1.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Capacitance | 0.65pF |
| Length | 1.07mm |
| Automotive Standard | AEC-Q101 |
| Height | 0.48mm |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.07 x 0.67 x 0.48mm |
| Width | 0.67mm |
| Test Current | 1mA |
