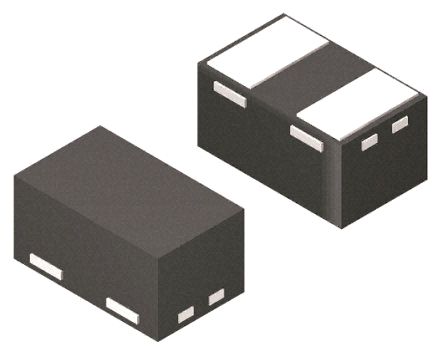

Diodes Inc D5V0F1U2LP3-7, Triple Uni-Directional TVS Diode, 0.25W, 2-Pin X3-DFN0603 [D5V0F1U2LP3-7]; 165-8427
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | X3-DFN0603 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 0.25W |
| Maximum Peak Pulse Current | 1.5A |
| ESD Protection | Yes |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 0.32mm |
| Width | 0.34mm |
| Length | 0.64mm |
| Capacitance | 0.65pF |
| Dimensions | 0.64 x 0.34 x 0.32mm |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
