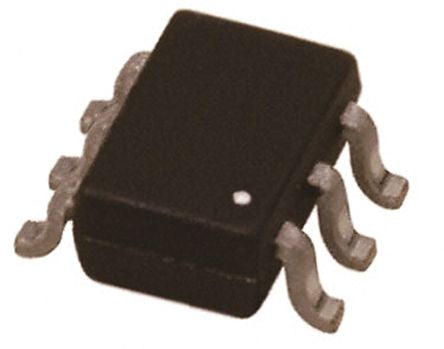

Diodes Inc D5V0F4U6SO-7, 9-Element Uni-Directional TVS Diode Array, 0.3W, 6-Pin SOT-26 [D5V0F4U6SO-7]; 165-8738
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Array |
| Maximum Clamping Voltage | 12V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-26 |
| Maximum Reverse Stand-off Voltage | 5.5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 0.3W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 9 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3.1mm |
| Capacitance | 0.65pF |
| Dimensions | 3.1 x 1.7 x 1.3mm |
| Maximum Reverse Leakage Current | 200nA |
| Test Current | 1mA |
| Width | 1.7mm |
| Height | 1.3mm |
