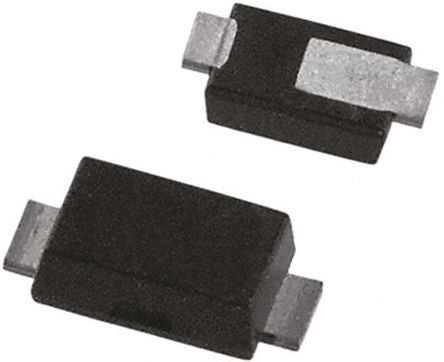

Diodes Inc DFLT220A-7, Uni-Directional TVS Diode, 1125W, 2-Pin POWERDI123 [DFLT220A-7]; 169-7492
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 375V |
| Minimum Breakdown Voltage | 242V |
| Mounting Type | Surface Mount |
| Package Type | POWERDI123 |
| Maximum Reverse Stand-off Voltage | 220V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1125W |
| Maximum Peak Pulse Current | 0.6A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Automotive Standard | AEC-Q101 |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
| Width | 1.93mm |
| Height | 1mm |
| Dimensions | 3 x 1.93 x 1mm |
