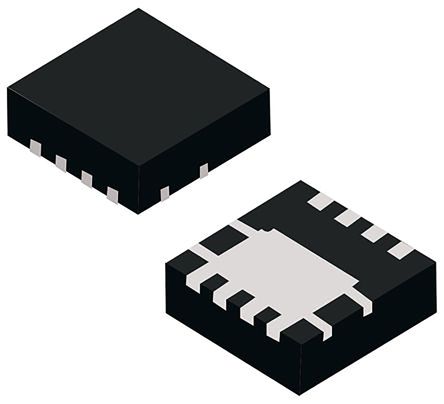

DMC3016LDV-7 Dual N/P-Channel MOSFET, 15 A, 21 A, 30 V DMC3016LDV, 8-Pin PDI3333 Diodes Inc [DMC3016LDV-7]; 133-3340
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 15 A, 21 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 17 mΩ, 38 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2 V, 2.4 V |
| Minimum Gate Threshold Voltage | 1.2 V, 1.4 V |
| Maximum Power Dissipation | 1.8 W |
| Transistor Configuration | Dual Base |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Width | 3.15mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 19.7 nC @ 15 V, 21 nC @ 15 V |
| Series | DMC3016LDV |
| Height | 0.8mm |
| Length | 3.15mm |
