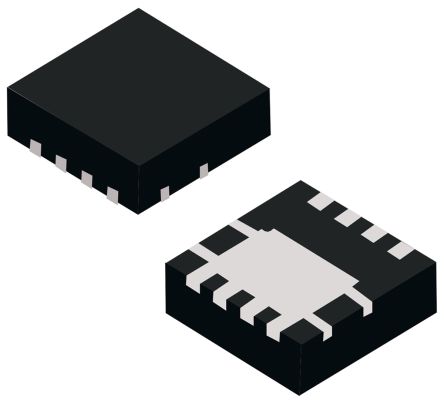

DMN10H099SFG-7 N-Channel MOSFET, 5.8 A, 100 V, 8-Pin POWERDI3333 Diodes Inc [DMN10H099SFG-7]; 146-0954
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.8 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | POWERDI3333 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 99 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 2.31 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 3.35mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 25.2 nC @ 10 V |
| Height | 0.8mm |
| Length | 3.35mm |
| Forward Diode Voltage | 0.77V |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
