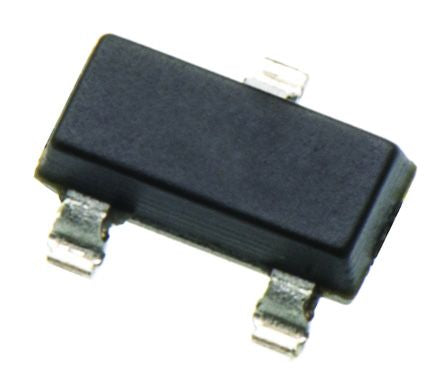

DMN10H220L-7 N-Channel MOSFET, 1.6 A, 100 V, 3+Tab-Pin SOT-23 Diodes Inc [DMN10H220L-7]; 921-1048
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.6 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 250 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1.3 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -16 V, +16 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 8.3 nC @ 10 V |
| Width | 1.4mm |
| Height | 1mm |
| Length | 3mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
