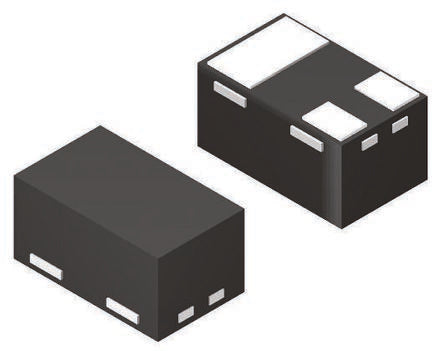

DMN2400UFB4-7 N-Channel MOSFET, 750 mA, 20 V, 3-Pin X1-DFN1006 Diodes Inc [DMN2400UFB4-7]; 169-0796
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 750 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | X1-DFN1006 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 900 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.9V |
| Maximum Power Dissipation | 470 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 1.08mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 0.675mm |
| Height | 0.35mm |
| Typical Gate Charge @ Vgs | 0.5 nC @ 4.5 V |
